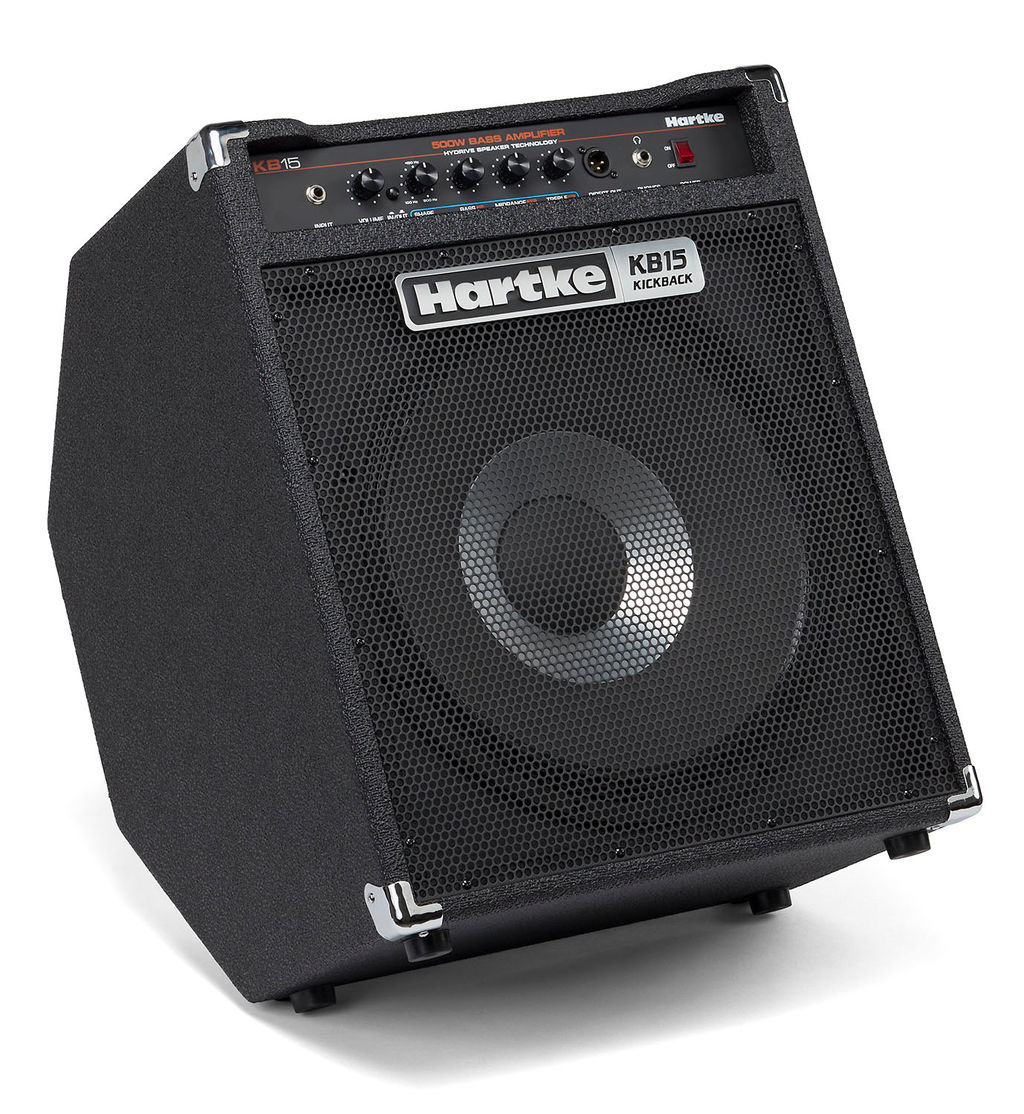

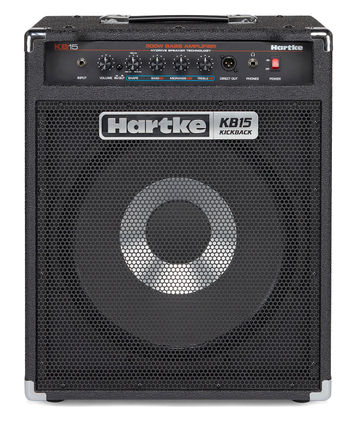

Product Description
- Lightweight Class D amplifier that weighs 35lb
- 500 watts of power
- 15″ HyDrive paper/aluminum hybrid cone driver
- Neodymium magnets
- 2-way (upright and “kickback”) cabinet design
- Unique Shape EQ knob with variable filter
- Full 3-band EQ
- XLR direct output
- 1⁄4″ headphone output
- 1⁄4″ passive/active bass input
- Perforated steel grille
- Molded strap carry handle
Specifications
Rated Output Power | 500 watts Peak / 250 watts RMS |
---|---|
Rated Input Level | 77.46mv rms (@1kHz) |
Total Harmonic Distortion | 0.54% (@1dB below rated output, 1kHz typical) |
Signal To Noise Ratio | 1W/49.3dBu (1Wrms @1kHz) |
Signal Gain Speaker Output | 37.1Vrms |
Signal Gain to Direct Out | 4.2Vrms |
Bass Control | 70Hz |
Midrange Control | 700Hz |
Treble Control | 5kHz |
Shape Control | 100Hz – 900Hz |
Dimensions | 16.73” x 17.55” x 21.25” / 425mm x 446mm x 540mm |
Weight | 35.6lb / 16.2kg |
