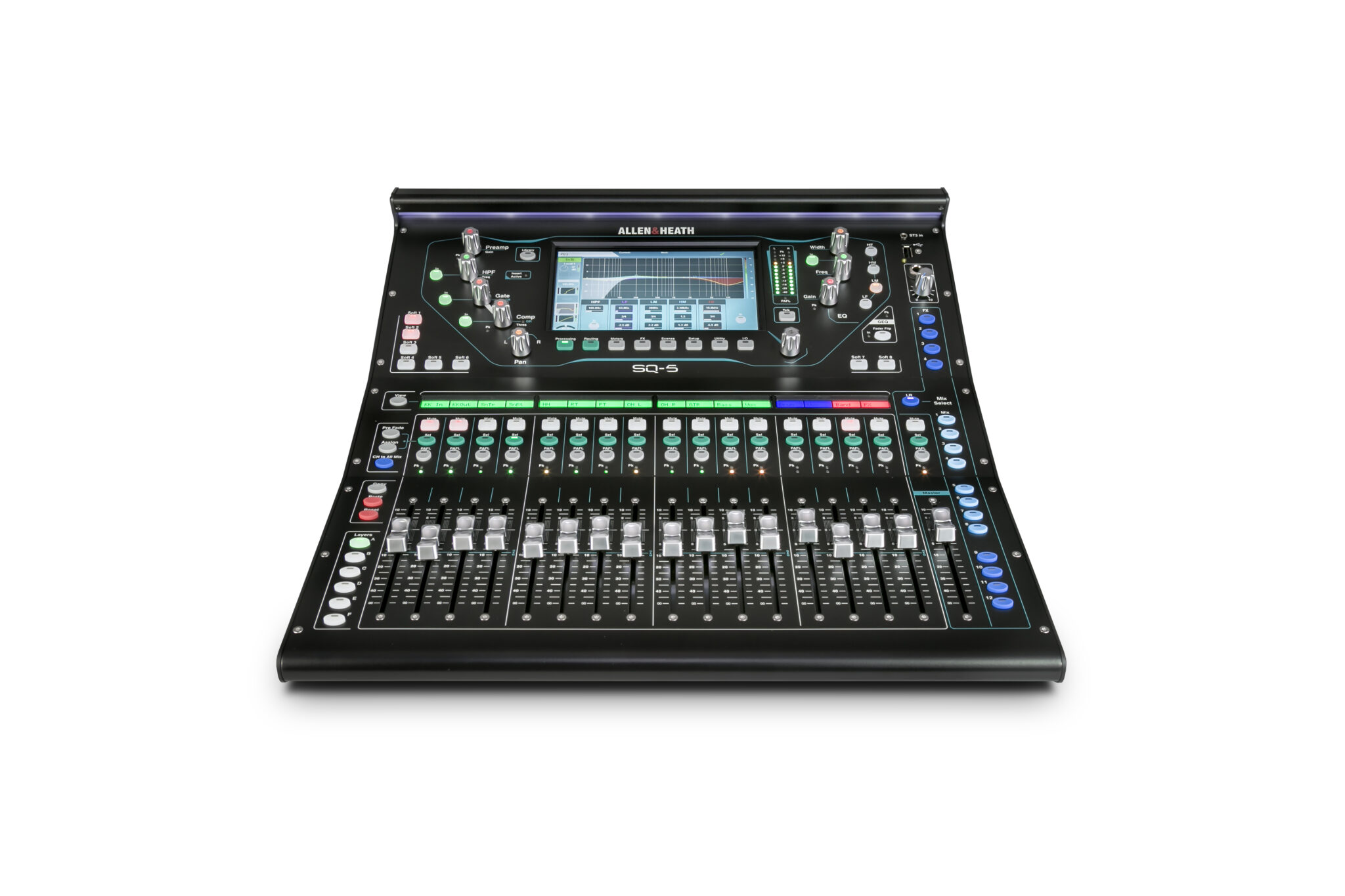

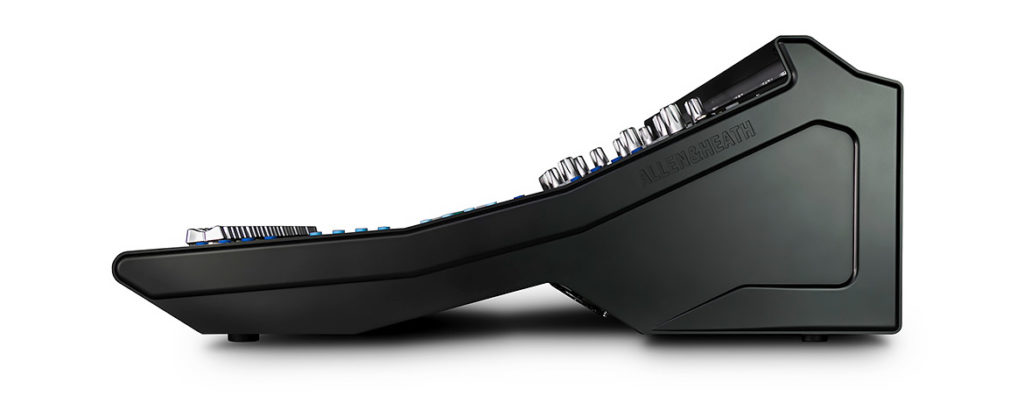

Compact, powerful, and versatile, the Allen & Heath SQ-5 is a premium 48-channel digital mixer designed for professionals who need exceptional performance in a portable format. It features 16+1 motorized faders, 16+1 onboard preamps and 8 assignable SoftKeys, providing comprehensive control in a compact 19” rack-mountable design.
-
Login/Register
- [woocs]
Allen and Heath SQ5
₦5,200,000.00
In Stock
A New Standard in Compact Digital Mixing
48 channel, 96kHz digital mixer for live sound, AV and installation.
Product Description
Drag-and-Drop Layout
Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, allowing you to build a mixing environment that works for you.
At-a-Glance Metering
Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.
Intuitive Control
SQ’s dashboard is centred around a high-res 7” touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control.
Speed Up Your Workflow
All SQ mixers feature SoftKeys which can be assigned to commonly used functions. The SQ-6 and SQ-7 also provide assignable Soft Rotaries for even more custom control.
SQ-Drive
Record to USB
The integrated SQ-Drive makes it quick and easy to capture and playback 16 channels (96kHz), 32 channels (48kHz), or a stereo recording of the performance direct to a USB key or drive.
No software setup, no soundcard driver issues and no extra laptop to bring to the performance.
Audio and Processing:
- 96kHz XCVI FPGA processing
- 48 input channels
- 12 stereo mixes + LR
- 3 stereo matrix
- 8 stereo FX engines + dedicated stereo returns
DEEP processing ready
Onboard I/O:
- 16+1 built-in mic preamps
- 2 stereo line inputs
- 12 XLR line outputs
- 2 TRS line outputs
- AES output
Control:

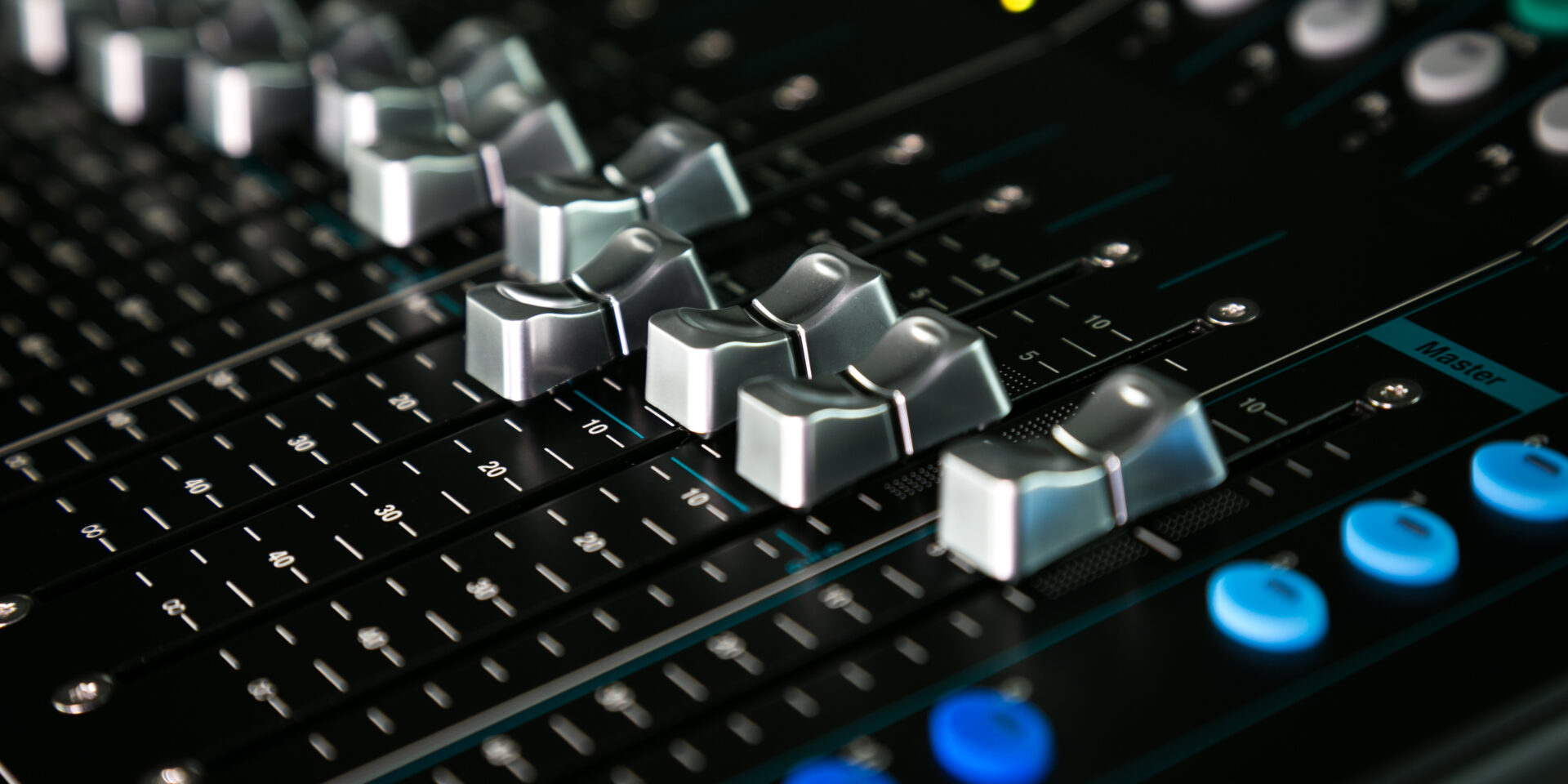

- 16+1 Faders / 6 Layers
- 7” capacitive touchscreen
- 8 assignable SoftKeys
- SQ-MixPad app
- SQ4You app
Expandability and Integration:
- SLink port for remote audio / expansion
- 64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
Recording and Streaming:
- SQ-Drive direct recording to USB
- 32×32 96kHz USB interface
